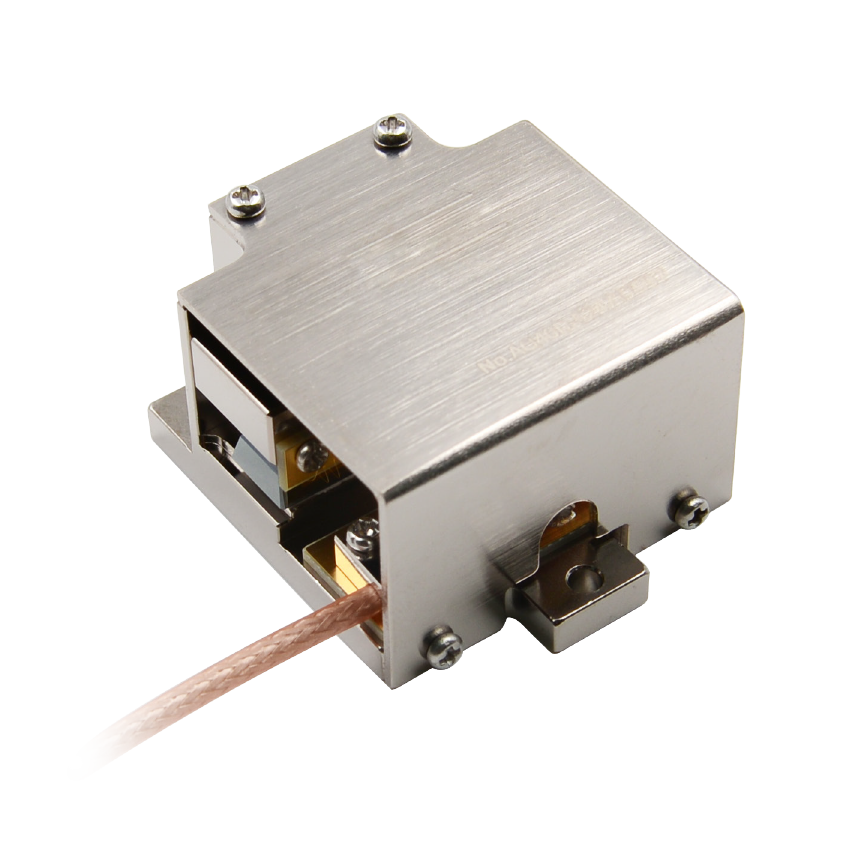

AOQS - Acousto-Optic Q Switches
Benefit from high-quality optical materials and high-damage threshold coatings for high-power intracavity pulse control applications.
Applying RF power to an acousto-optic q-switch diverts most of the incident laser light out of the main beam path and spoils the Q of the laser cavity. This allows high gain to build up. Coherent AOQS devices feature high modulation loss and low insertion loss.
AOQS – Some Key Specifications
Partner with Coherent to specify custom AOQS devices for your OEM needs, featuring different apertures, mechanical dimensions, and switching frequencies.
Wavelength (nm) |
Aperture (mm x mm) |
RF Frequency (MHz) |
Loss Modulation (%) |
Max Optical Intensity (MW/cm2) |
Max Insertion Loss (%) |
Rise/Fall Time (ns) |
1064±30 |
3 x 1.5 |
40.68 |
>85 |
1000 |
1 |
<180 |
4 x 3 |
68 |
|||||
3 x 1.5 |
80 |
|||||
4 x 2.5 |
80 |
