Two-Photon Metabolic FLIM with the Coherent Axon 780 Fibre Laser

Becker & Hickl GmbH – a technology leader in equipment for photon counting - has shown earlier that small femtosecond fibre lasers can be used as inexpensive excitation sources for multiphoton fluorescence imaging systems. With an emission wavelength of 780 nm, 40 MHz to 80 MHz pulse rate, and an average power of 100 mW to 500 mW the lasers are not only suitable for excitation of NAD(P)H but also for a wide variety of other fluorophores [1, 2], including those of extremely short fluorescence lifetime [3, 4, 5].

Becker & Hickl were therefore interested to see how the Axon femtosecond fibre laser would perform in these applications.

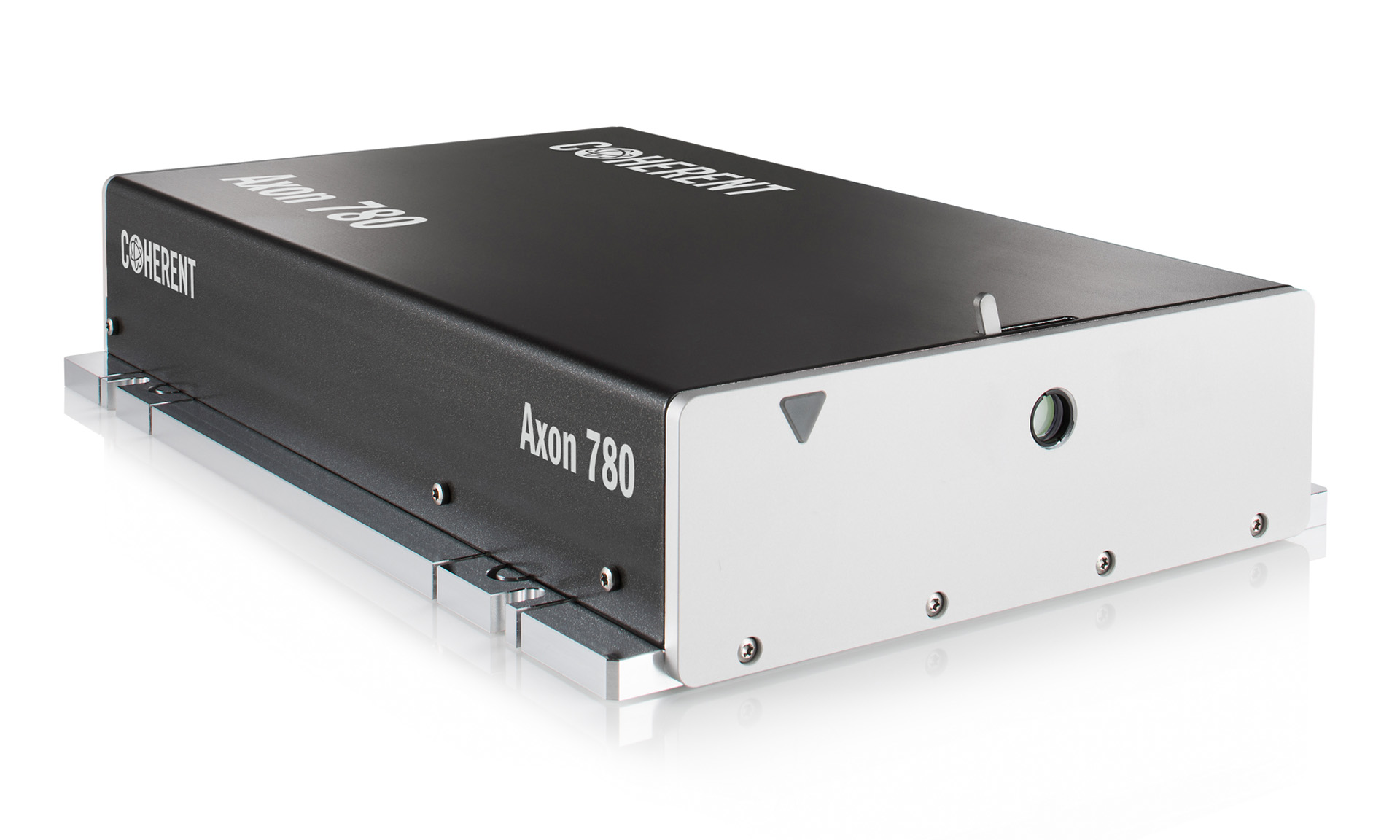

Fig. 1: Coherent Axon 780 femtosecond laser



System Architecture

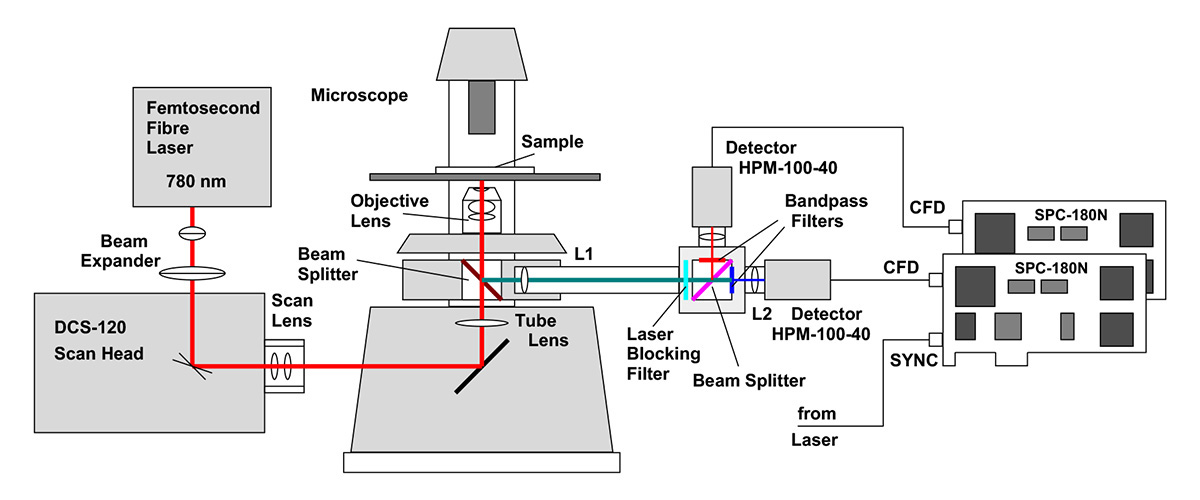

As a test system they used a bh DCS-120 MP multiphoton FLIM system. The architecture of this system is shown in Fig. 2.

The laser beam of the Axon 780 laser is injected into the DCS-120 scan head via a free beam. Inside the scan head it is deflected by two fast galvanometer mirrors. The scan lens of the scan head projects the laser beam into the microscope. Inside the microscope, the beam passes a dichroic beam splitter and is projected onto the back aperture of the microscope lens. The microscope objective lens focuses the beam into the image plane inside the sample. As the beam is deflected by the galvanometer mirrors the laser focus raster-scans over the image area in the sample.



For maximum spatial resolution it is important that the laser beam completely fills the back aperture of the microscope lens. With the usual focal lengths of the scan and tube lenses this is not automatically the case. The beam is therefore expanded by a factor 1.5 before it enters the scanner. The beam diameter in the back aperture is approximately 12 mm, which is enough to fill the aperture of even the largest microscope lenses. Over-filling the aperture is unproblematic. The associated loss in excitation power can be tolerated because the laser delivers far more power than needed.

Fluorescence light from the sample is collected back through the microscope lens, and fed through a non-descanned beam path. L1 and L2 form a periscope. The periscope also collects photons which are not perfectly collimated by the microscope lens, e.g. photons which are scattered on the way out of a thick sample. The fluorescence light is split into two wavelength intervals, and detected by two bh HPM-100-40 hybrid detectors [6, 7]. The single-photon pulses from the detectors are recorded in two SPC-180N TCSPC / FLIM modules [1]. The SPC-180N modules determine the detection times of the photons after the excitation pulses and the position of the scanner in the moment of the photon detection. This information is used to build up the FLIM images. These are arrays of pixels, with each pixel containing a full fluorescence decay curve in a large number of time channels [1].

Scanning of the laser beam and beam blanking in the flyback phases are hardware-controlled by a bh GVD-140 scan controller card. Laser-intensity control is performed via the AOM control signal input of the Axon laser. This signal is provided by the GVD-140 card as well. The entire system is operated by bh's SPCM data-acquisition and control software [1], providing a fully integrated FLIM system with scanner control, laser control, data acquisition, and data analysis. The user interface of the FLIM system is shown in Fig. 3.

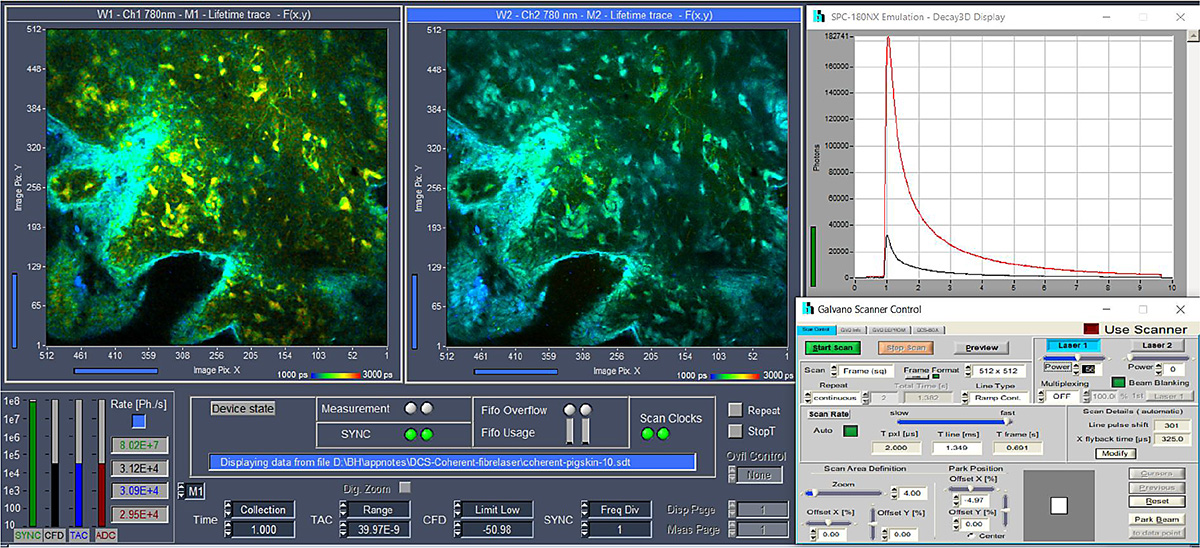

Fig. 3: Main panel of SPCM Data Acquisition and Control Software



Result

FLIM images taken with the DCS-120-AXON combination are shown in Fig. 4 through Fig. 6. An 40x, NA= 1.3 oil immersion lens was used for all images. Data analysis was performed with the bh SPCImage NG FLIM data analysis suite. Fig. 4 and Fig. 5 show colour-coded FLIM images of the mean (amplitude-weighted) lifetime and of the metabolic indicator, a1. A histogram of the selected image parameter (tm or a1) is shown upper right, a decay curve at the cursor position is shown lower right. Decay parameters at the selected spot are shown far right.

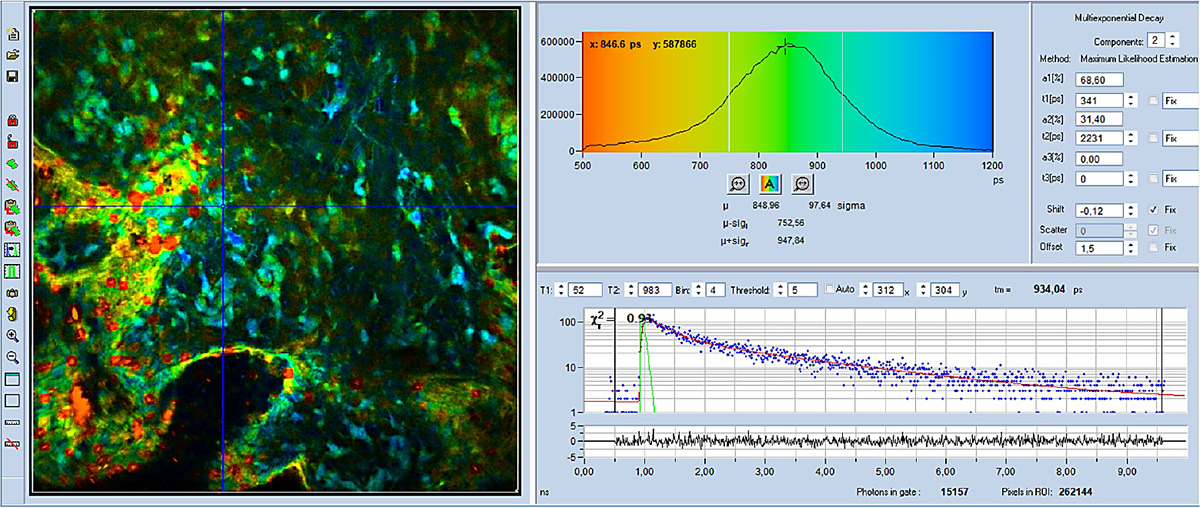

Fig. 4: Pig skin, NADH image, amplitude weighted mean lifetime of double-exponential decay

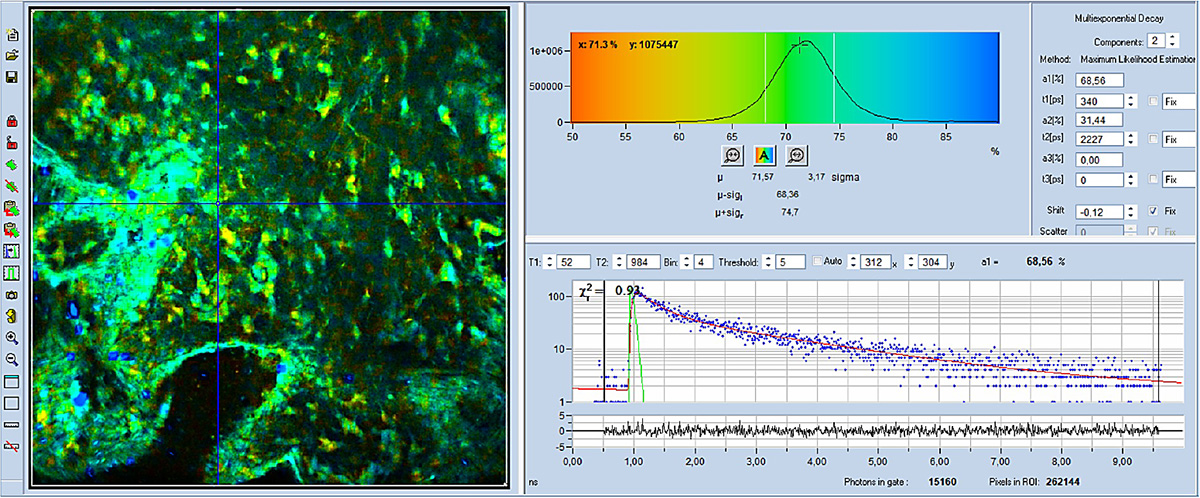

Fig. 5: Pig skin, NADH image, amplitude, a1, of fast decay component. a1 is an indicator of the metabolic state

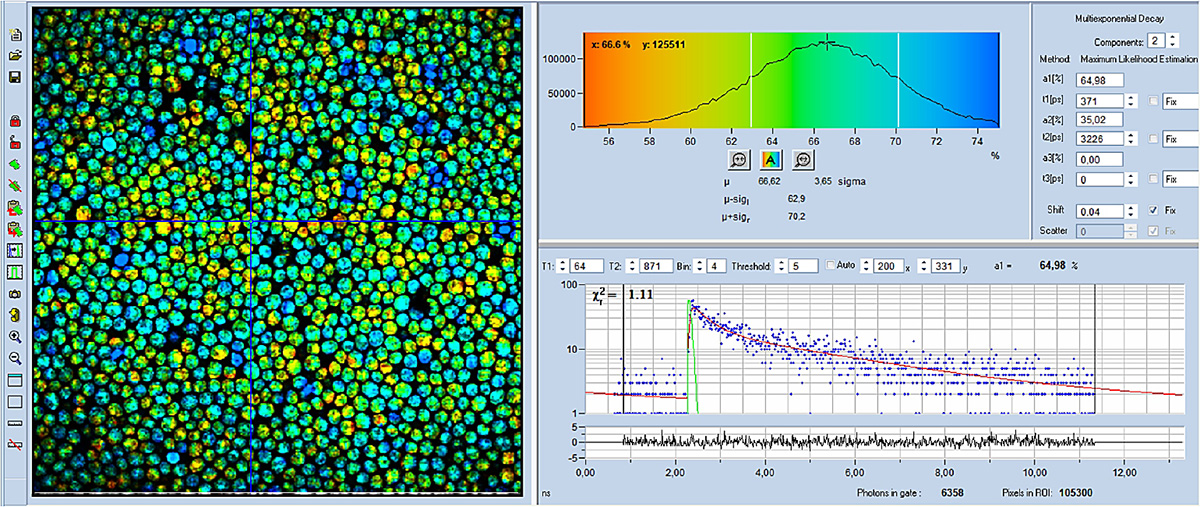

Fig. 6 shows yeast cells. The emission filter was chosen to detect from 440 to 470 nm, thus restricting the spectral range to detection of NAD(P)H. The upper detection limit of 470 nm may appear very restrictive. However, restriction to less than 470 nm is necessary to avoid the detection of FAD and FMN fluorescence. These compounds are excited together with NAD(P)H but show different dependence on the metabolic state. The data were analysed by the MLE algorithm of SPCImage NG, delivering high-accuracy double-exponential decay parameters in the individual pixels of the image. The image shown displays a1, the amplitude of the fast decay component. It represents the amount of unbound NAD(P)H. Since the bound/unbound ratio changes with the metabolism, a1 is also called the 'metabolic indicator' [1].



As can be seen, a1 is clearly different in different cells. This indicates that the metabolic state is different in different cells. High a1 (shown blue) indicates that the metabolism is more glycolytic, low a1 (yellow) shows that it is more oxydative.



‘We have demonstrated that the Coherent Axon 780 femtosecond fibre laser, combined with bh's precision scanner optics, detectors, TCSPC / FLIM electronics, and data analysis software delivers accurate information on the metabolism of live cells and tissues.’ With its internal AOM-based intensity control the laser smoothly integrates in bh's SPCM FLIM acquisition software. Beam blanking in beam-stop situations and scanner flyback phases and reproducible intensity control protect the sample from local photodamage. All in all, the DCS-120 MP / Axon 780 combination is an easy-to-use high-resolution, high-sensitivity, two-photon laser scanning FLIM microscope.



References

1. W. Becker, The bh TCSPC Handbook. 10th edition. Becker & Hickl GmbH (2023), available on www.becker-hickl.com,  printed copies available from bh
2. W. Becker, C. Junghans, H. Netz, Two-Photon FLIM with a Femtosecond Fibre Laser. Application note, available on www.becker-hickl.com
3. W. Becker, C. Junghans, A. Bergmann, Two-Photon FLIM of Mushroom Spores Reveals Ultra-Fast Decay Component. Application note (2021), available on www.becker-hickl.com
4. W. Becker, A. Bergmann, C. Junghans, Ultra-Fast Fluorescence Decay in Natural Carotenoids. Application note, www. becker-hickl.com (2022)
5. W. Becker, C. Junghans, V. Shcheslavskiy, High-Resolution Multiphoton FLIM Reveals Ultra-Fast Fluorescence Decay in Human Hair. Application note, www. becker-hickl.com (2023)
6. W. Becker, B. Su, K. Weisshart, O. Holub, FLIM and FCS Detection in Laser-Scanning Microscopes: Increased Efficiency by GaAsP Hybrid Detectors. Micr. Res. Tech. 74, 804-811 (2011)
7. Becker & Hickl GmbH, Sub-20ps IRF Width from Hybrid Detectors and MCP-PMTs. Application note, available on www.becker-hickl.com
