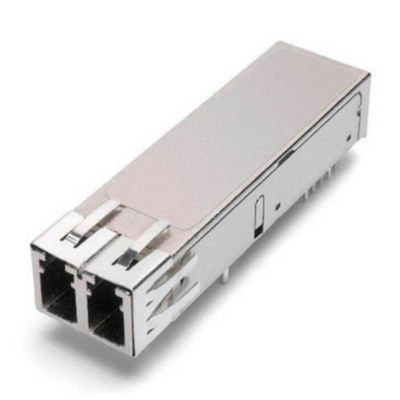

1000BASE-SX and 2G Fibre Channel (2GFC) 500m Extended Temperature SFP Optical Transceiver
FTLF8519P3BNL Small Form Factor Pluggable (SFP) optical transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3 and Fibre Channel FC- PI-2 Rev. 5.0. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLF8519P3BTL |
|---|---|
| Operating Distance | 500 m |
| Data Rate | 2.125 Gb/s |
| Data Transfer Rate | ≤10G |
| Protocol | CPRI Gigabit Ethernet Fibre Channel |
| Connector | LC |
| Media Type | Duplex MMF |
| Form Factor | SFP |
| Low End Case Temperature (ºC) | -40 °C |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| High End Case Temperature (ºC) | 85 °C |
| Wavelength (nm) | 850nm Band |
| Transmitter | VCSEL |
| Receiver | PIN |
