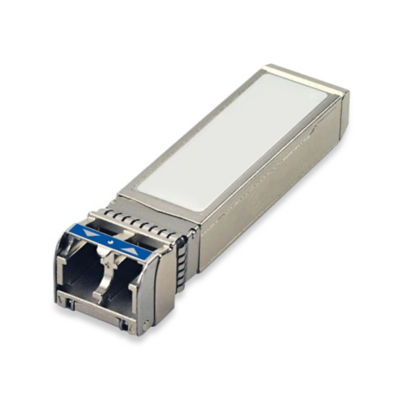

25GE LR/eCPRI CWDM SFP28 Optical Transceiver
FTLF3436W4BTxx SFP+ transceivers are compliant SFF-8472 Rev 12.2, and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 3.0. The optical transceiver is RoHS compliant as described in Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLF3436W4BTXX |
|---|---|
| Operating Distance | 10 km |
| Data Rate | 25.78 Gb/s |
| Data Transfer Rate | 25G |
| Protocol | Gigabit Ethernet CPRI |
| Connector | LC |
| Media Type | Duplex MMF |
| Form Factor | SFP+ |
| Low End Case Temperature (ºC) | -40 °C |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| High End Case Temperature (ºC) | 85 °C |
| Wavelength (by band type) | 1270nm 1290nm 1330nm 1370nm 1350nm Bidi 1310nm Band |
| Transmitter | DFB Laser |
| Receiver | PIN |
