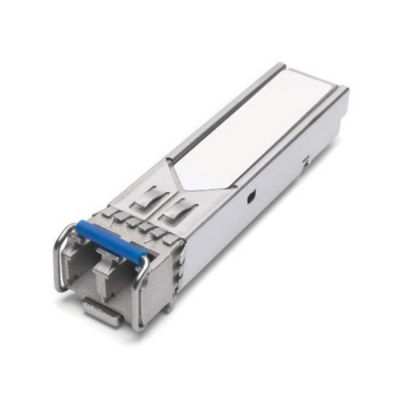

OC-48 SR/STM S-16 2km SFP Optical Tranceiver
FTLF1321P1xTL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1. They comply with SONET OC-48 SR (SDH STM I-16) standards2, Gigabit Ethernet as specified in IEEE Std 802.33 and Fibre Channel FC-PI 13.04. They are compatible with SONET OC-12 and SONET OC-3 standards2. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLF1321P1XTL |
|---|---|
| Operating Distance | < 2 km |
| Data Rate | 2.67 Gb/s |
| Data Transfer Rate | ≤10G |
| Protocol | CPRI Gigabit Ethernet Fibre Channel SONET/SD/SDH |
| Connector | LC |
| Media Type | Duplex SMF |
| Form Factor | SFP |
| Low End Case Temperature (ºC) | -40 °C |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| High End Case Temperature (ºC) | 85 °C |
| Wavelength (nm) | 1310nm Band |
| Transmitter | Fabry-Perot Laser |
| Receiver | PIN |
