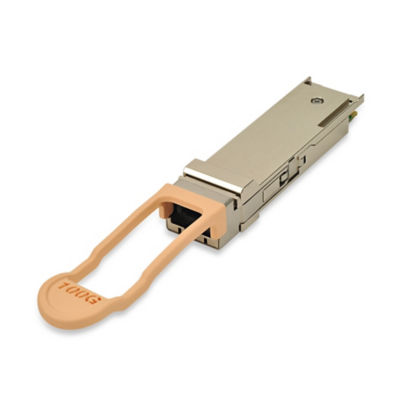

100G Parallel MMF 100m CPRI Wireless Extended Temp QSFP28 Optical Transceiver
FTLC9555WEPM 100G QSFP28 transceiver modules are compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4 and CAUI-4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Note AN-2143. The transceiver is RoHS-6 compliant per Directive 2011/65/EU4 and Finisar Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLC9555WEPM |
|---|---|
| Operating Distance | 100 m |
| Data Rate | 103.1 Gb/s |
| Data Transfer Rate | 100G |
| Protocol | Gigabit Ethernet CPRI |
| Connector | MPO (MTP12) |
| Media Type | Parallel MMF |
| Form Factor | QSFP28 |
| Low End Case Temperature (ºC) | -10 °C |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| High End Case Temperature (ºC) | 75 °C |
| Wavelength (nm) | 850nm Band |
| Transmitter | 4x VCSEL |
| Receiver | PIN |
