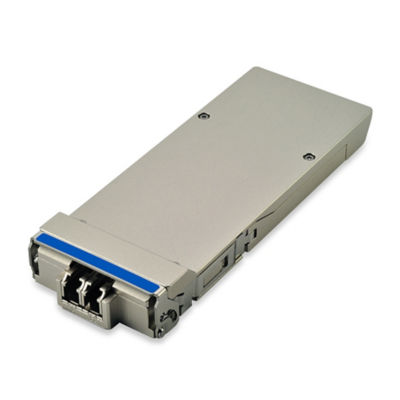

10 km 100GBASE-LR4 CFP2 Optical Transceiver Module
2nd generation, FTLC1122RDNL 100G CFP2 transceiver modules are compliant with the CFP MSA and IEEE 802.3ba 100GBASE-LR4 specifications. Digital diagnostics functions are available via the MDIO interface, as specified by the CFP MSA and Finisar Application Note AN-21185. The transceiver is RoHS compliant and lead-free per Directive 2011/65/EU, and Finisar Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLC1122RDNL |
|---|---|
| Operating Distance | 10 km |
| Data Rate | 103.1 Gb/s |
| Data Transfer Rate | 100G |
| Protocol | Gigabit Ethernet |
| Connector | LC |
| Media Type | Duplex SMF |
| Form Factor | CFP2 |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| High End Case Temperature (ºC) | 75 °C |
| Wavelength (nm) | 1310nm Band |
| Transmitter | 4x LWDM DFB Laser |
| Receiver | PIN |
