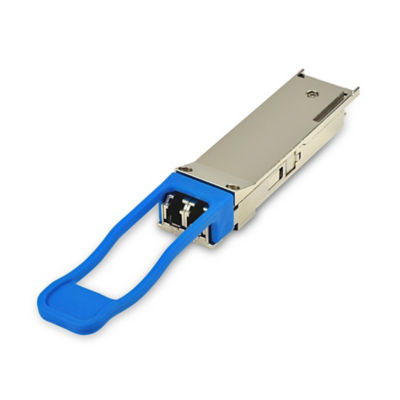

40GBASE-LR4 QSFP+ Optical Transceiver Module
Designed for 40 Gigabit per second communications, the FTL4C1QE2C QSFP+ transceiver modules are suitable for single mode fiber connections and adhere to QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 standards. For details of our compliance standards, click here.
Datasheet
| Parameter | FTL4C1QE2C |
|---|---|
| Operating Distance | 10 km |
| Data Rate | 41.2 Gb/s |
| Data Transfer Rate | 40G |
| Protocol | Gigabit Ethernet |
| Connector | LC |
| Media Type | Duplex SMF |
| Form Factor | QSFP+ |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | N/A |
| High End Case Temperature (ºC) | 70 °C |
| Wavelength (nm) | 1310nm Band |
| Transmitter | 4x DFB Laser |
| Receiver | PIN |
