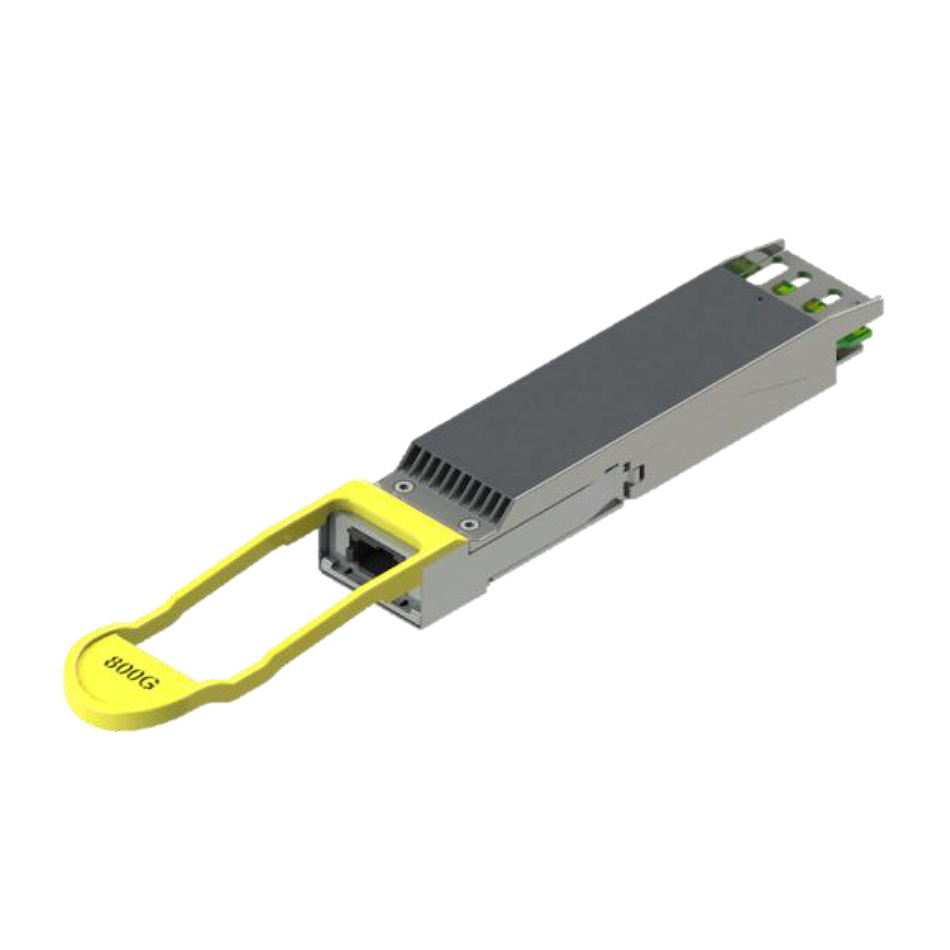

800G-DR4 OSFP Optical Transceiver
FTCE3517L1PCM transceiver modules are compliant with the OSFP MSA and IEEE P802.3dj. Digital diagnostic functions are available via the I2C interface, as specified by the OSFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTCE3517L1PCM |
|---|---|
| Operating Distance | 500 km |
| Data Transfer Rate | 800G |
| Form Factor | OSFP |
| Wavelength (by band type) | 1310 nm |
| Receiver | PIN |
| Low End Case Temperature (ºC) | 0 °C |
| High End Case Temperature (ºC) | 70 ˚C |
| Transmitter | SiPho |
| Connector | MPO12 |
| Media Type | SMF |
| Data Rate | 825 Gb/s |
| Protocol | Gigabit Ethernet InfiniBand |
| Voltage Supply (V) | 3.3V |
| Diagnostics | Digital |
| Wavelength (nm) | 1310 nm |
