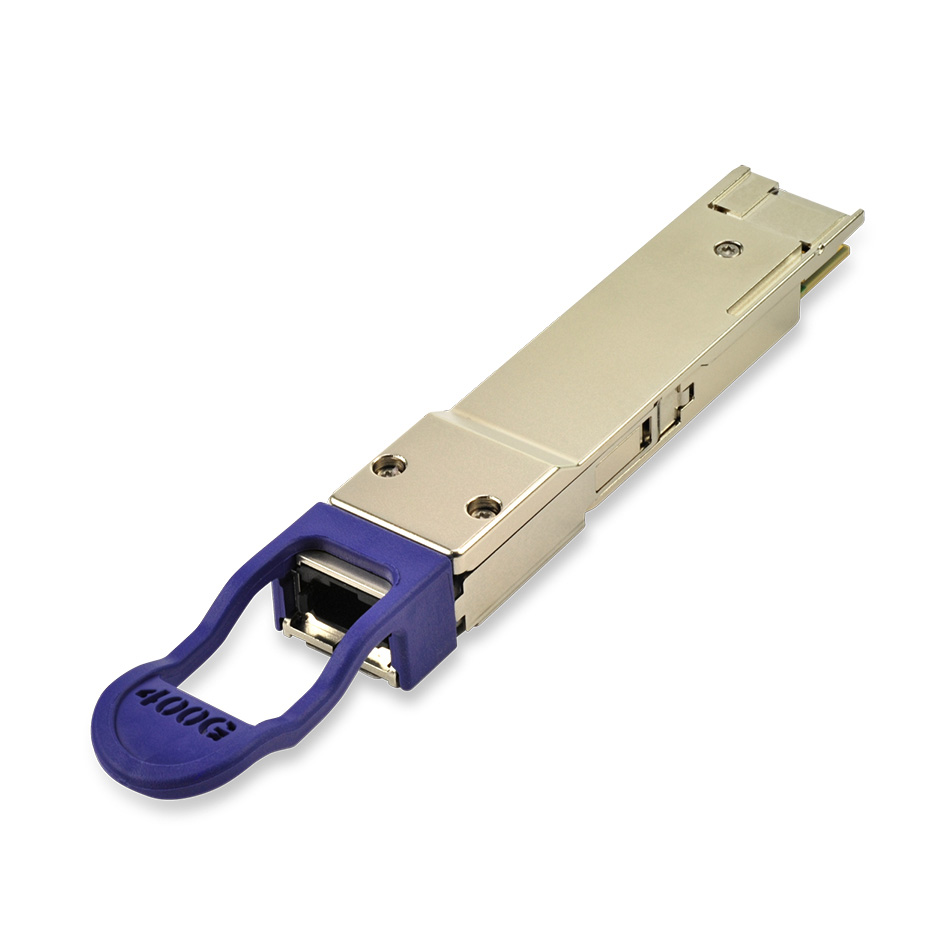

400G DR4 QSFP-DD Hot-Pluggable Optical Transceiver
These transceivers are compliant with the QSFP-DD MSA, and portions of IEEE P802.3bs. Digital diagnostic functions are available via the I2C interface specified in Common Management Interface Specification Rev. 4.0 and Finisar Application Note AN-2189. The transceiver is RoHS-6 compliant per Directive 2011/65/EU4 and Finisar Application Note AN-2038.For details of our compliance standards, click here.
Datasheet
| Parameter | FTCD4523E3PCM |
|---|---|
| Operating Distance | 500 m |
| Data Transfer Rate | 400G |
| Form Factor | QSFP-DD |
| Wavelength (by band type) | 1310 nm |
| Receiver | PIN |
| Low End Case Temperature (ºC) | 0˚C |
| High End Case Temperature (ºC) | 70 ˚C |
| Transmitter | EML |
| Connector | MPO12 |
| Media Type | Single SMF |
| Data Rate | 425 Gb/s |
| Protocol | Gigabit Ethernet |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 1310 nm |
