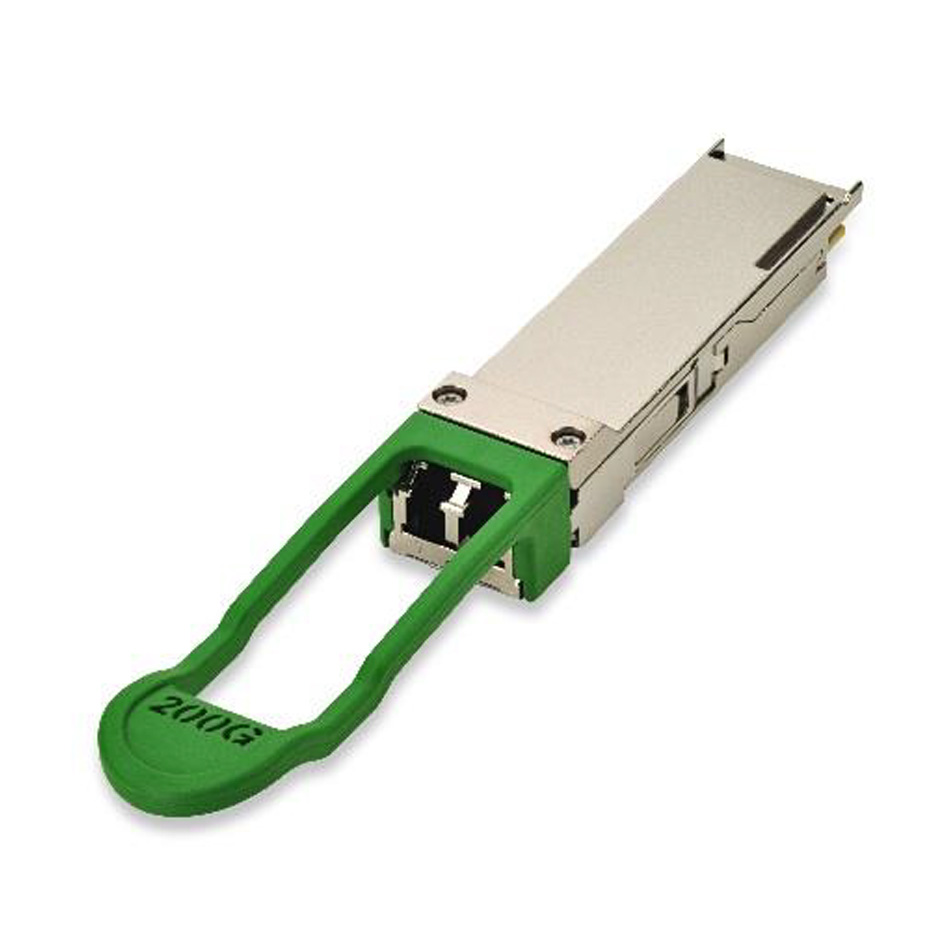

200G FR4 QSFP56 Optical Transceiver
FTCC1112E2PCL 200G FR4 QSFP56 optical transceiver modules are designed for use in 200 Gigabit Ethernet/HDR Infiniband applications over single mode fiber. They are compliant with CMIS4.0, QSFP MSA and portions of IEEE P802.3bs. The transceiver is RoHS compliant as described in Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTCC1112E2PCL |
|---|---|
| Operating Distance | 2 km |
| Data Transfer Rate | 200G |
| Form Factor | QSFP56 |
| Receiver | PIN |
| High End Case Temperature (ºC) | 70 °C |
| Transmitter | CWDM |
| Connector | LC |
| Media Type | Duplex SMF |
| Data Rate | 212.5 Gb/s |
| Protocol | Gigabit Ethernet InfiniBand |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 1310nm Band |
