Networking

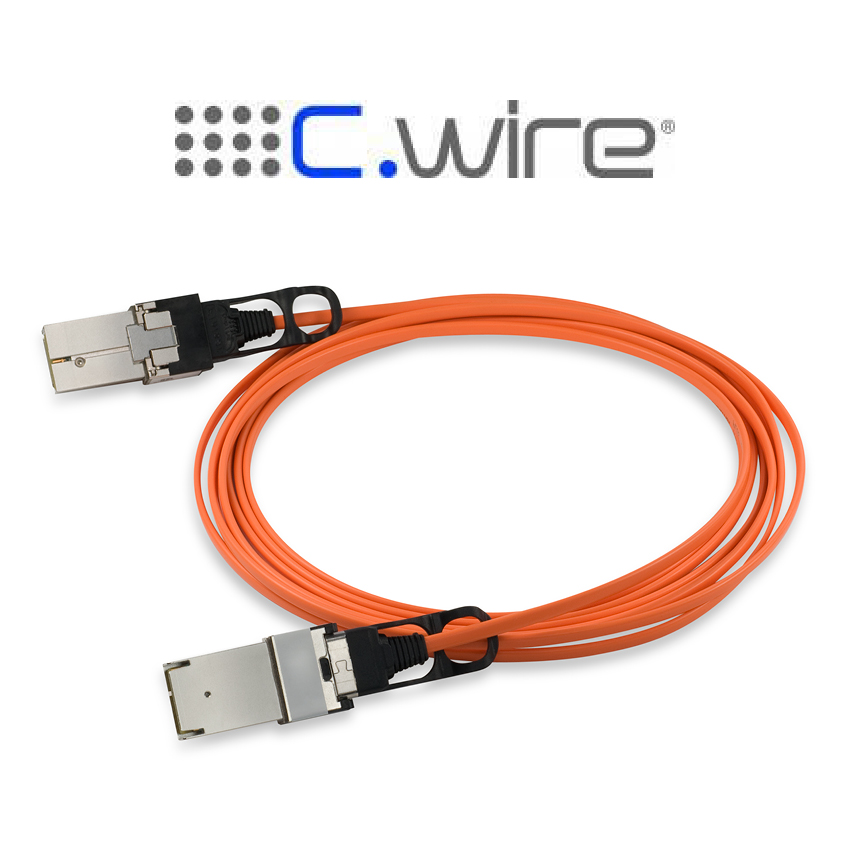

C.wire® (CXP) Active Optical Cables
Use our 12-channel parallel AOCs for storage, networking, and high-performance computing connectivity where they deliver up to 12 x 12.5 Gb/s bi-directionally.
Based on our vertically integrated VCSEL array technology and CXP high-density connectors, these lightweight AOCs are ideal for datacenter reaches up to 100 meters in InfiniBand 12x SDR/DDR/QDR, 100G Ethernet, and other datacom, telecom, computing applications.
C.wire® (CXP) AOCs – Product Line Overview
Get high-speed using up to 12 channels over parallel multimode fiber (MMF) round cable. Low weight and short bend radius mean easy installation in high port count applications.
C.wire Model Number* |
Max Aggregate Data Rate (Gb/s) |
Data Rate per Lane (Gb/s) |
Module Form Factor |
Cable Lengths Options (m) |
Cable Type |
FCBND10CD3Cxx |
135.8 |
11.3 |
CXP to CXP |
3, 5, 10, 15, 20, 30, 50, 100 |
Plenum-rated, round cable |
FCBRD10CD3Cxx |
135.8 |
11.3 |
CXP to CXP |
Riser/LSZH-rated, round cable |
|
FCBND12CD3Cxx |
150 |
12.5 |
CXP to CXP |
Plenum-rated, round cable |
*The xx denotes the cable length in meters.
