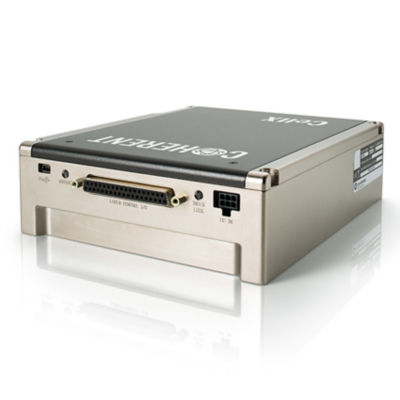

CellX Multi-Wavelength Laser Engine
Up to four addressable output laser wavelengths (from 405 nm, 488 nm, 561 nm, and 637 nm) with independent user-adjustable position and focus. Custom wavelengths for OEMs.
Incorporates up to four OBIS lasers. CellX reduces cost, space and complexity by eliminating electronic redundancy. Minimizes setup time for researchers and time/cost to market for instrument OEMs. Ideal for flow cytometry with co-linear or separated beams.
Application Specific Laser Light Engine
High-performance circular beam output with up to four lasers combined. Fully adjustable beam divergence and steering. Fully integrated electronics. Internal thermal management (TEC) for optimal stability and control.

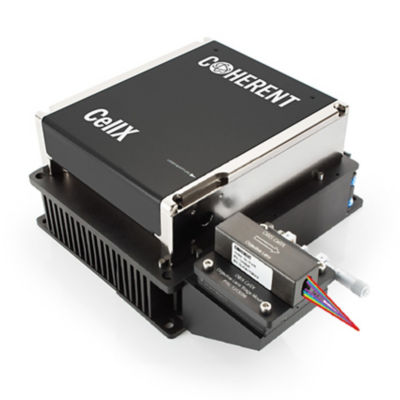

For Flow Cytometry and Particle Measuring
Built with Beam Expanders for larger beam diameters at longer wavelengths. Benefits of a common spot size at the focus.
Optical Specifications |
CellX 405 |
CellX 488 |
CellX 561 |
CellX 637 |
Wavelength (nm) |
405 |
488 |
561 |
637 |
Output Power (mW) Part Number 1426532 1426531 1426530 1426529 1318680 1318682 1318681 1318683 |
- - - 50 50 50 100 100 |
50 50 50 50 50 50 100 100 |
- - 50 - n/a 50 n/a 100 |
- 50 - - 50 50 100 100 |
Beam Diameter at 1/e2 (mm) |
2.6 |
3.0 |
3.5 |
4.5 |
Beam Divergence (mrad, full angle) |
0.2 |
|||
For Microscopy

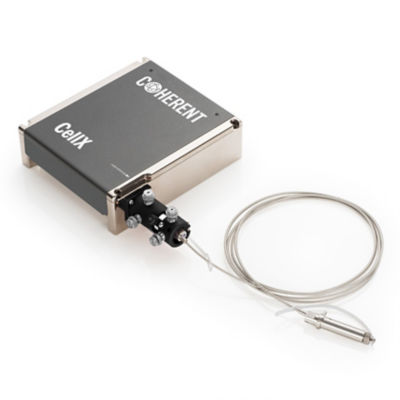

The CellX can be provided with fiber delivery from Coherent. The CellX with a common 0.7mm beam diameter is coupled to a fiber launcher and can then be configured with a fiber. Fiber options include an FC/APC output connector or a collimated beam fiber output.
Specifications |
CellX 405 |
CellX 488 |
CellX 561 |
CellX 637 |
Wavelength (nm) |
405 |
488 |
561 |
637 |
Output Power (mW) |
100 |
100 |
100 |
100 |
Beam Diameter at 1/e2 (mm) |
0.7 |
0.7 |
0.7 |
0.7 |
Part Number 2309585 2309912 |
Includes Fiber Launcher and Fiber with Collimated Beam Output Includes Fiber Launcher and Fiber with FC/APC Output |
|||
CellX, General Purpose with common 0.7 mm beam diameter
Looking for a CellX with all 0.7 mm beam diameters like OBIS LX/LS lasers? CellX with a common 0.7 mm beam diameter offers all the CellX advantages of an adjustable internal beam expander as well as adjustable internal beam steering. CellX with a common 0.7 mm beam diameter is an excellent choice for fiber launch.
Optical Specifications |
CellX 405 |
CellX 488 |
CellX 561 |
CellX 637 |
Wavelength (nm) |
405 |
488 |
561 |
637 |
Output Power (mW) Part Number 1424660 |
100 |
100 |
100 |
100 |
Beam Diameter at 1/e2 (mm) |
0.7 |
|||
Beam Divergence (mrad, full angle) |
1.5 |
|||
Video Spotlight
Light Engines for Biomedical Instrumentation
Instead of spending overhead cost and effort to combine individual lasers and steer the beam where it’s needed, the OBIS CellX does all this for you. State-of-the-art bioinstrumentation devices can be created in a challenging time frame with this universal light engine.
