Lasers

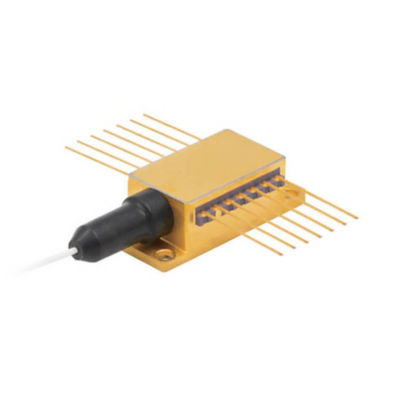

Narrow Spectral Linewidth Laser
Get our compact laser in one of three configurations – free beam, fiber-coupled, or module – and use the wavelength-locked output for Raman and other demanding applications.
A unique method locks the laser wavelength, guaranteeing an ultranarrow bandwidth (<0.1 nm) plus a high side-mode suppression ratio (SMSR) (typically 40 dB). Delivering a smaller, economical alternative to external cavity lasers for spectroscopy and sensing.
Narrow Spectral Linewidth Laser - Key Specifications
Use this stabilized laser with no need to control ambient temperature thanks to its integrated TE cooler. It delivers a long expected lifetime with MTTF >20,000 hrs.
Product Specifications
Module Number |
Wavelength (nm) |
Linewidth (nm) |
Output Power (mW) |
Power Stability (%) |
SMS Ratio (dB) |
Operating Temp Range (°C) |
RLAS-0785-0500-N-MM-10-01-02-A |
785±0.5 |
≤0.1 |
500 |
<3 |
40 |
-20 to +50 |
