Laser Components and Accessories
BIMO-FSC3 & CUT12 Cutting Heads
Cut sheet metal with this family of processing heads offering a unique combination of performance, reliability, serviceability, and user-friendly operation.
These tools enable high-speed fiber laser cutting of sheet metals – such as mild steel, stainless steel, and aluminum – at thicknesses up to 50 mm, while delivering high uptime and reliability in even the harshest industrial environments.
BIMO Flat Sheet & Bevel Cutting Heads
Choose from a range of cutting heads, with options for working with ultra high-power lasers and beam-shaping lasers. All are IP65 rated for operation in harsh environments.
| Model | Power Rating (kW) | Numerical Aperture | Features |
CUT12 |
12 |
0.15 |
Focused spot characteristics yield high-speed, high-quality cutting, with an adjustable focal plane to help minimize process variations. Direct EtherCAT controllability with mechanical configurations for maximum compatibility, which can be used with flange connectors or quick exchange connectors. |

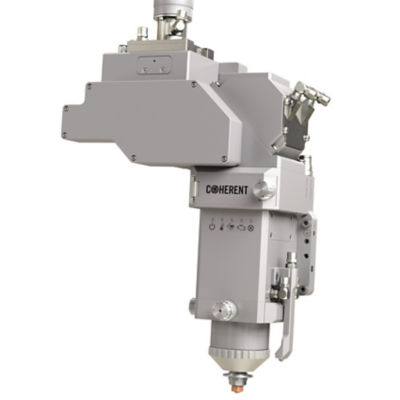

FSC3-Z-HP |
30 |
0.15 |
Integrated height sensing and a large z-axis (beam focus) positioning range yield highly consistent cutting, even with significant variations in workpiece dimensions. Field serviceable or replaceable optics largely eliminates maintenance downtime. |

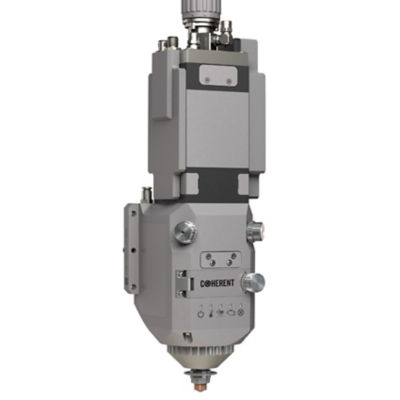

FSC3 |
20 |
0.125 |
Offers the fastest, motorized, independent adjustment of magnification and focal-plane position. |
FSC3-L |
20 |
0.18 |
Offers the fastest, motorized, independent adjustment of magnification and focal-plane position. Suitable for large numerical apertures, making it ideal for beam-shaping lasers. |

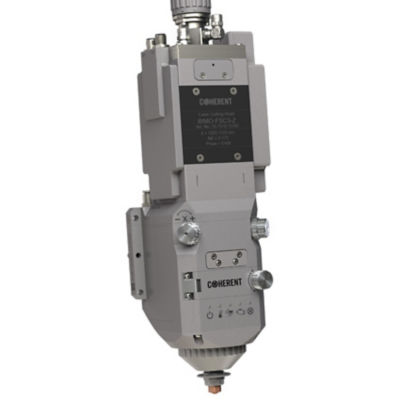

FSC3-Z |
20 |
0.125 |
This head offers just Z-axis functionality for reduced complexity and quicker integration. Compatible with some beam-shaping lasers. |
15 |
0.17 |
