Reflective Phase Retarders

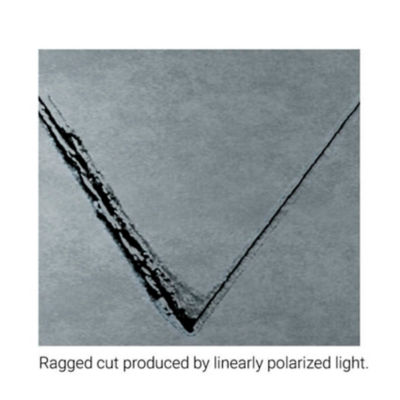

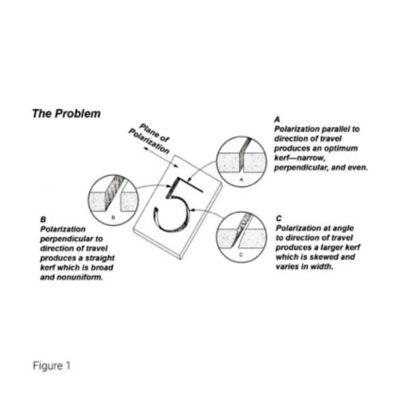

Transform linear to circular polarization with our single reflective component to cut metals with narrower and more consistent kerf using high-power CO2 lasers.

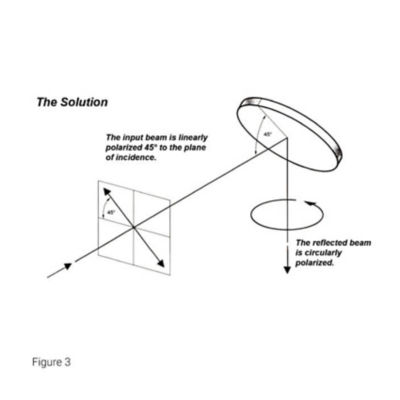

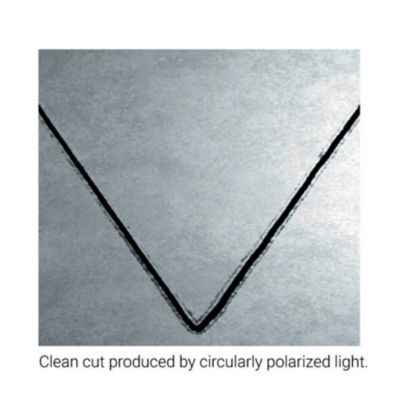

Our reflective phase retarders integrate the functionality of a quarter-wave retarder and a mirror to convert a linear polarized laser beam to circular polarization. This provides easy access to the well-established benefits of cutting with circularly polarized light.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
Product Selection
Choose from silicon optics for moderate power applications and copper RPRs for high-power operation, plus a large selection of part diameters.
Model |
Substrate |
Diameter (mm) |
Edge Thickness (mm) |
Reflectivity (%) |
90° Phase Shift Tolerance (%) |
498237 |
Si |
38.1 |
4.06 |
≥98% |
±6 |
893833 |
50.8 |
5.08 |
±2 |
||
582132 |
50.8 |
5.08 |
±2 |
||
592353 |
50.8 |
9.53 |
±6 |
||
102719 |
50.8 |
5 |
±2 |
||
969917 |
50.8 |
10.16 |
±6 |
||
772930 |
68 |
20.32 |
±1 |
||
697768 |
76.2 |
6 |
±6 |
||
224094 |
76.2 |
6.35 |
±6 |
||
390686 |
Cu |
38.1 |
6.35 |
±6 |
|
666269 |
50 |
10 |
±6 |
||
832944 |
57.15 |
10 |
±2 |
||
488199 |
57.15 |
31.75 (water cooled) |
±6 |
||
800102 |
60 |
10 |
±2 |
||
634413 |
60 |
15 |
±2 |
||
748680 |
76.2 |
12.7 |
±6 |
||
744069 |
76.2 |
15 |
±2 |
