Absorbing Thin-Film Reflector (ATFR)
Protect a CO2 laser from back reflections that can cause instability and damage when cutting highly reflective metals with this mirror that acts as an optical isolator.

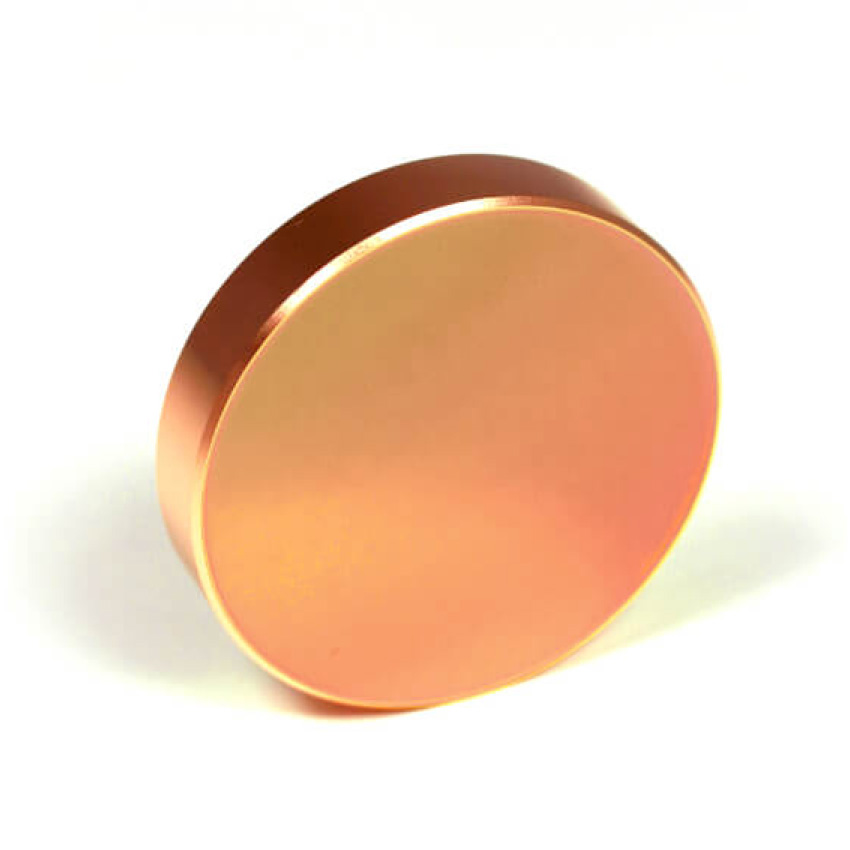

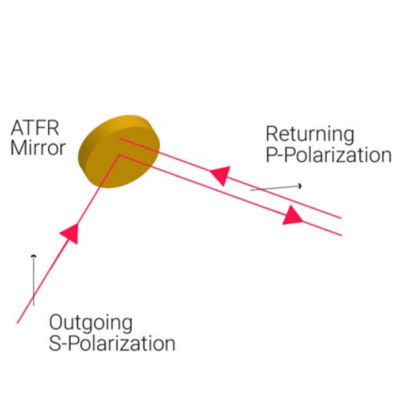

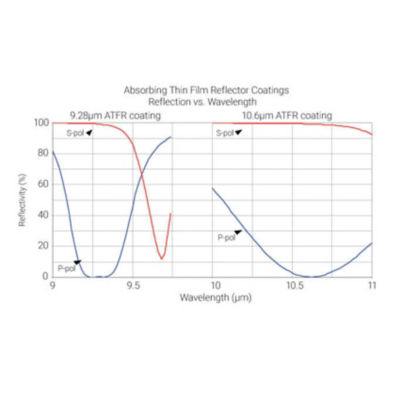

This Cu mirror has a polarization-sensitive thin-film coating that reflects s-polarization and absorbs p-polarization. When used before a reflective phase retarder it will effectively block light returned from the process from reaching the laser.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
Absorbing Thin-Film Reflector Specifications

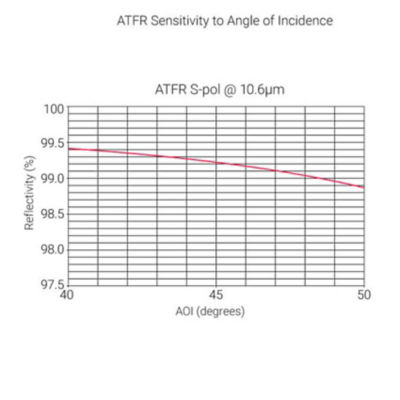

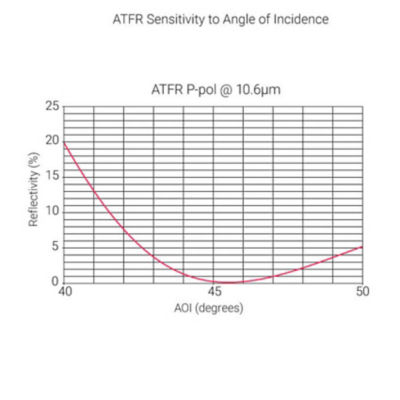

Select the size you require. Note that it must be positioned before the reflective phase retarder, and at an angle where it sees the incident beam as s-polarized.
Model |
Diameter (mm) |
Thickness (mm) |
Reflectivity (%) at 10.6µm, |
|
S-polarization |
P-polarization |
|||
682239 |
38.1 |
4.06 |
≥ 99.0 |
≤ 1.5 |
432326 |
50 |
10 |
||
160586 |
50.8 |
9.53 |
||
504774 |
57.15 |
31.75 |
||
728695 |
60 |
15 |
||
255328 |
76.2 |
12.7 |
||
