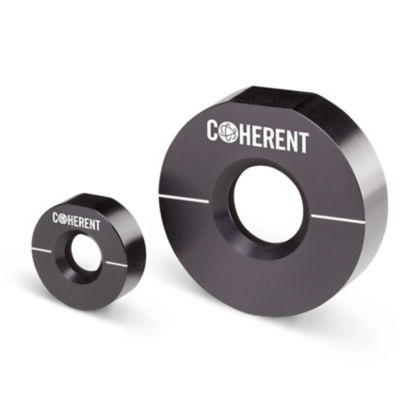

THz-Raman Filter Components

With improved performance over thin film and gel filters, these compact and economical components are ideal for creating high-performance custom systems with access to low frequency Raman spectra < 150 cm-1.

Ideal for academic or OEM applications. Filters come pre-mounted in housings for use with standard 1” or ½" mirror mounts. Compact, pre-aligned assemblies guarantee correct pitch and yaw angle of each filter to deliver fully optimized performance.

THz-Raman Filter Components Summary

Multiple wavelengths and configuration options are available. All filters use the same technology to produce optimal system performance from a compatible laser.

Filter Components
  Features Available Wavelengths (nm) Diameter (mm) Clear Aperture (mm)


SureBlockTM
Notch Filters



  • Optical Density > 4
  • Transition width < 10 cm-1
  • Angle tunable center wavelength
  • Environmentally stable operation
  • No degradation over time
  • Requires compatible wavelength stabilized and collimated, ASE-free laser for optimal performance
  • 488
  • 514
  • 532
  • 633
  • 785
  • 830
  • 1064

25.4

 9


NoiseBlockTM 90/10
Beamsplitter Filters

  • Diffraction Efficiency > 90%
  • Bandwidth < 10 cm-1
  • Operating angle 8-12 degrees
  • Angle tunable center wavelength
  • Environmentally stable operation
  • No degradation over time
  • 488
  • 514
  • 532
  • 633
  • 785
  • 830
  • 1064

25.4

9

NoiseBlock
ASE Filters

  • Diffraction Efficiency > 90% (~70% for 405 nm)
  • Bandwidth < 10 cm-1
  • Operating angle 8-12 degrees
  • Angle tunable center wavelength
  • Environmentally stable operation
  • No degradation over time
  • 488
  • 514
  • 532
  • 633
  • 785
  • 830
  • 1064

12.7

4.5
