Beam Combiners

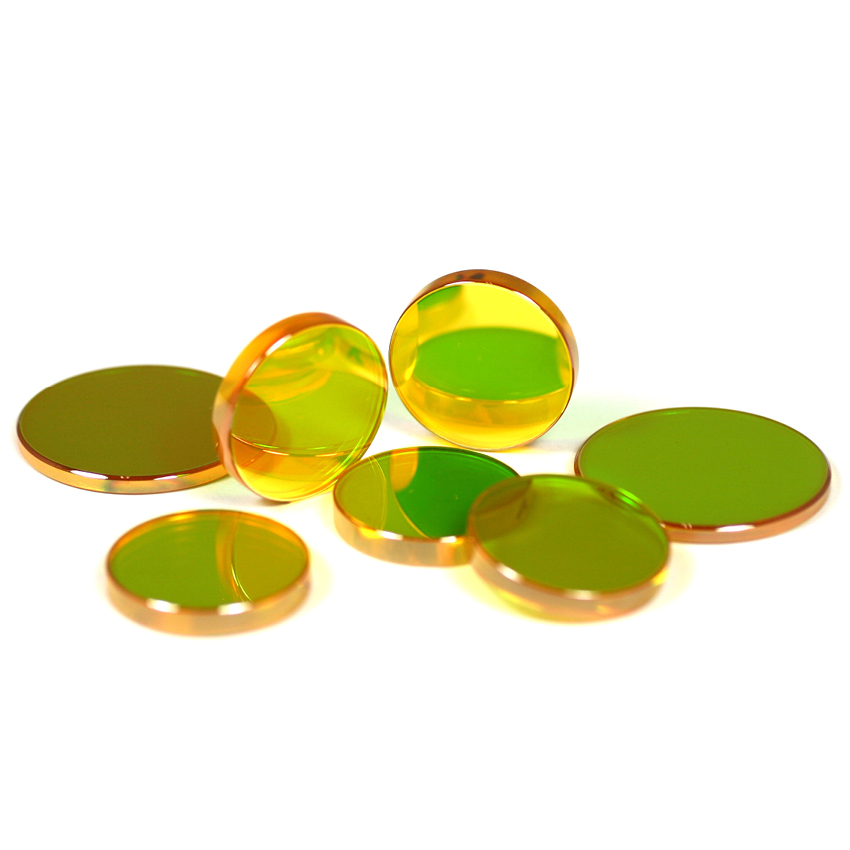

Align CO2 and other infrared laser beam delivery systems with these dichroic beamsplitters that transmit IR and reflect HeNe or visible wavelength diode-laser beams.
These plano ZnSe optics simplify the process of aligning infrared optical systems by enabling a precisely collinear visible wavelength laser to be introduced into the beam path.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
Standard ZnSe Beam Combiner Selection
Choose from several different diameter standard ZnSe combiners. Custom products on other substrates – including ZnS, and Ge – can be fabricated, as well.
Diameter (mm) |
Thickness (mm) |
Transmittance @ 10.6µm |
Reflectance |
Angle of Incidence (degrees) |
12.7 |
2.03 |
98% |
90% @ 633 nm |
45 |
19.05 |
2.03 |
|||
25.4 |
3.05 |
|||
38.1 |
3.05 |
|||
50.8 |
5.08 |
|||
19.05 |
2.03 |
90% @ 670 nm |
||
25.4 |
3.05 |
