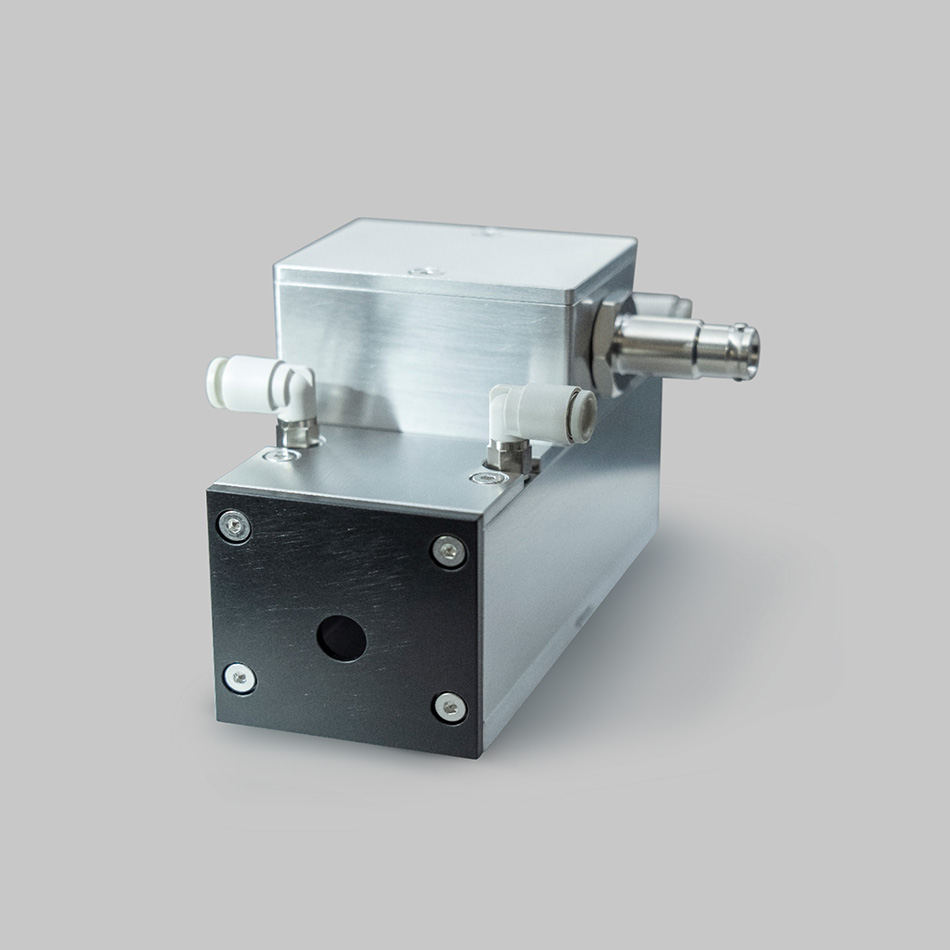

Electro-Optic Switch
Increase throughput and improve performance in CO₂ laser-based printed circuit board via drilling systems with an innovative electro-optic switch from Coherent.
Coherent has developed the first commercial electro-optic switch to offer a cost-competitive alternative for PCB drilling and other marking applications that benefit from faster risetime pulses than available from acousto-optic modulators. These modulate on the nanosecond scale, allowing for speeds unobtainable by traditional modulators. The system is supplied as a complete package including switch, TFPs, driver, and power supply.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
Electro-optic Switch for VIA drilling
Features
- Fast rise time for improved material processing
- No beam deflection for simplified delivery optics
- Large aperture (9 mm)
- Handles up to 300 W
- Comparable insertion loss to AOMs
- Supplied as a complete system
- Electro-optic switch, TFPs, Driver, and Power Source
Applications
- PCB Via Hole Drilling
- Marking
- Engraving
- Perforating
