General Optics

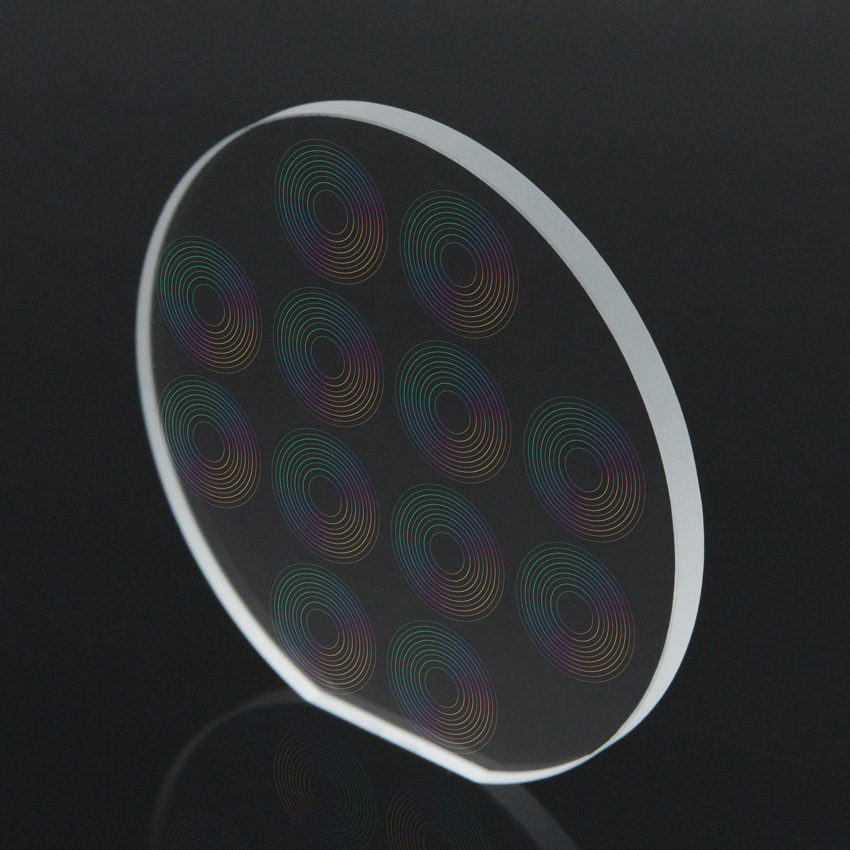

Diffractive Optical Elements (DOE)
Transform Gaussian laser beams into other intensity distributions to achieve optimal results in a variety of materials processing applications with Coherent DOEs.
Coherent DOEs are built for use in demanding industrial applications – high-power laser welding, PCB drilling, glass cutting, solar cell manufacturing, and more – and are characterized by high efficiency, low stray light, and high damage threshold.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
DOE Fabrication Capabilities
Specify DOEs with various functional capabilities, including a top hat, rectangular, or ring beam shaper, and 1D/2D beam splitter or arbitrary ratio beam splitter.
Specifications
Wavelength range |
193 nm to 3 μm |
DOE steps |
2 to 16 steps |
Conversion efficiency (%) |
40% to 98% |
Element size |
≤200 mm |
Coating (optional) |
Antireflection |
Custom design |
Almost any symmetry or arbitrary shape |
Materials |
Fused silica, BK7, or customer-specified material |
