WaveAnalyzers – Optical Spectrum Analyzers
Use one of our instruments if you’re an engineer working in advanced communications R&D or if you’re a technician on the manufacturing floor needing higher test throughput.
Our user-friendly tools offer a comprehensive analysis of optical signals in the C- or L-Bands with a host of features like auto-ranging. With no specs compromising, all WaveAnalyzers can deliver their highest spectral resolution and fastest sweep speed simultaneously.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
WaveAnalyzers – Product Family Overview
Choose a portable (200A) model for lab use and field service, get a compact 400 model for R&D or production tasks, or choose the 1500S for the ultimate resolution and speed.
Model Number |
Frequency and (Wavelength) Range |
Spectral Sampling Resolution |
Resolution Bandwidth FWHM |
Connector Type |
Instrument Type |
WA-00200A-C-P-1-AA-00 |
191.1 to 196.2 THz (1527.8 - 1568.8 nm) |
312.5 MHz |
1.75 GHz |
FC-APC |
Portable unit with full C-Band coverage |
WA-00200A-C-P-4-AA-00 |
LC-PC |
||||

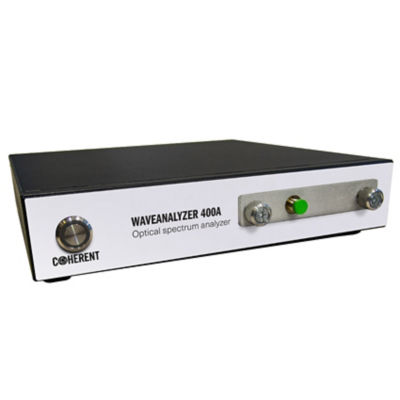

WA-00400A-C-S-1-AA-00 |
191.1 to 196.2 THz (1527.8 - 1568.8 nm) |
- |
<500 MHz |
FC-APC |
Benchtop C-Band |
WA-00400A-D-S-1-AA-00 |
190.6 to 196.7 THz (1523.9 - 1572.7 nm) |
Benchtop Super C-Band |
|||
WA-00400A-X-S-1-AA-00 |
186.2 to 196.2 THz (1527.8 - 1610.0 nm) |
Benchtop C+L Bands |
|||

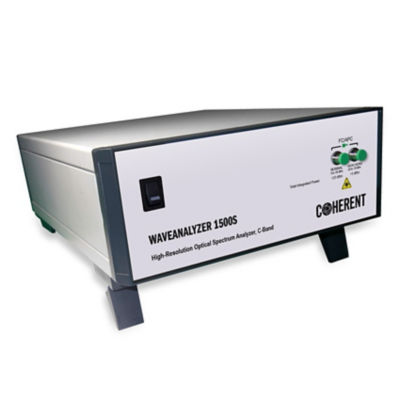

WA-AA-1500S-ZZ-H |
191.05 to 196.35 THz (1526.8 - 1569.1 nm) |
20 MHz |
180 MHz (typ.) |
FC-APC |
High-Resolution Benchtop C-Band |
WA-AA-1500S-RM-H |
191.05 to 196.35 THz (1526.8 - 1569.1 nm) |
High-Resolution Rack-mount C-Band |
|||
WA-AA-1500S-L-H |
186.0 to 191.05 THz (1569.1 - 1611.7 nm) |
High-Resolution Benchtop L-Band |
